Wheel mixer

Time:2023-Apr-10view:1686

Wheel mixer

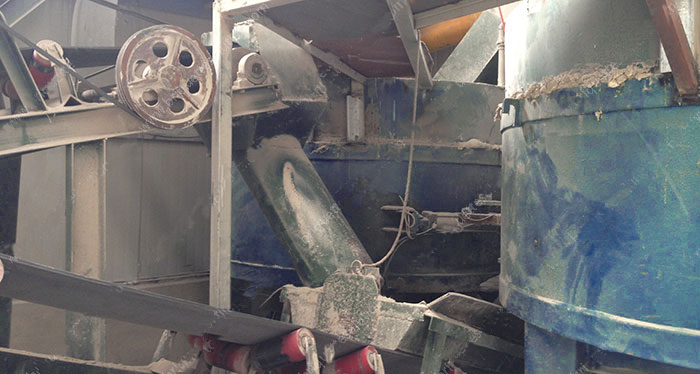

Wheel mixer picture

Wheel mill is an important equipment in briquetting process. The main functions of the wheel mill are as follow

  1. Mix the materials well-distributed with the binder
  2. Crush some big materials into tiny particles
  3.  Reduce the gaps between the particle materials, remove more air and help to make better briquette

Working principle

When the material is fed in the wheel mixer, it starts to work. The material is fed into the middle part of the grinding plate and rolled under the thrust of the scraper or its own centrifugal force. After several times of rolling, the size of the required particles leaked from the mesh around the grinding plate, and the coarse particles returned to the roll for re-rolling. The wheel mixer is suitable for crushing materials with medium hardness, such as silica and clay, or for mixing materials.

Scope of application

Wheel mixer materials

Wheel mixer materials

The wheel mixer is suitable for mixing powder materials, such as refractory mud, clay, fly ash, tailings sand, slag, moulding sand etc. It is widely used in non-fired bricks, autoclaved bricks, refractories, ceramics, building materials and other industries.

Wheel mixer component

Transmission, grinding plate, grinding wheel, planetary mixing device, mainframe, etc

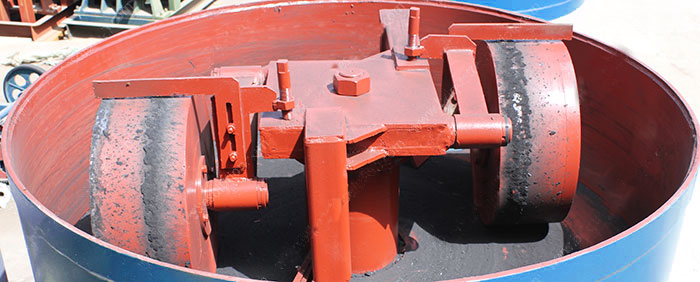

Wheel mixer component

Wheel mixer component - planetary mixing

Compare to another common mixer — double shaft mixer in the briquette line, the wheel mill is a kind of mixer which cannot continuously work though it’s working theory. Thus, in order to make our briquette line more automatic, we usually set more than one wheel mill to solve the problem.

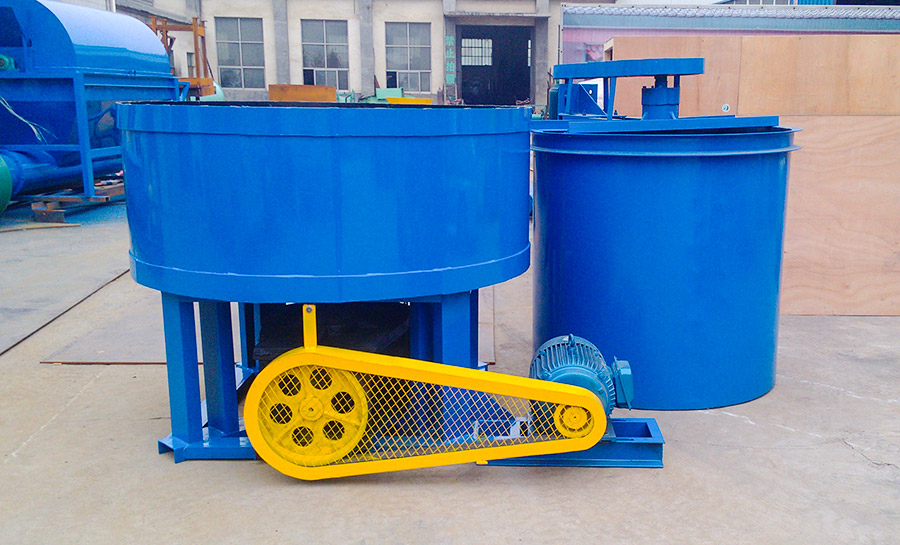

Two sets Wheel mixer together for a continuous briquette line

Two sets Wheel mixer together for a continuous briquette line

Wheel mixer prarmeters

Model Power Diameter Capacity Weight Packing size
HSLN-700 4KW 0.7M 500KG/H 800KG Φ0.7*1.1M
HSLN-1600 7.5KW 1.6M 2000KG/H 1500KG Φ1.6*1.4M
HSLN-1800 15KW 1.8M 2500KG/H 2000KG Φ1.8*1.4M
HSLN-2000 15KW 2M 3000KG/H 2500KG Φ2*1.4M
Tags: coal
